DS-1630

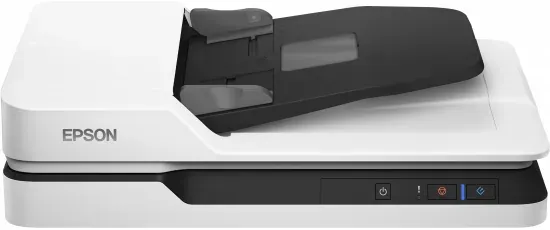

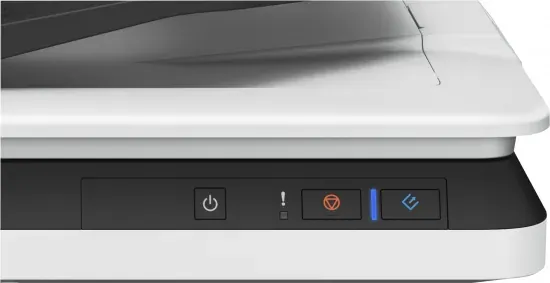

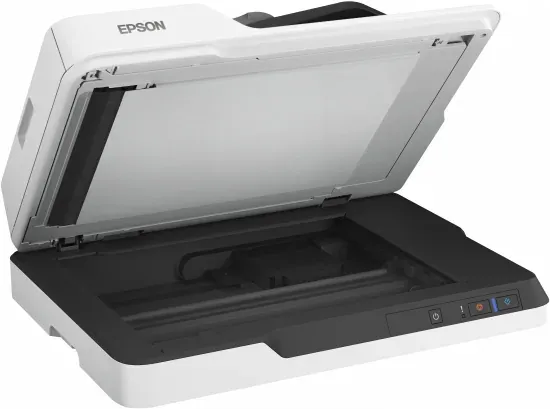

Epson DS-1630 Document Scanner

Flatbed Epson document scanner — for digitising drawings, invoices and bound documents.

Key features

  • Scanner type Flatbed + sheet-fed
  • Optical resolution 1,200 x 1,200 dpi (flatbed); 600 x 600 dpi (ADF)
  • Scan speed 25 ppm simplex (300 dpi); 10 ipm duplex
  • Interface USB
Call for availability+880 1730-007454
Request quotation

Prices are indicative and subject to change. Confirm at time of order.

Technical specifications

Part 00823

Scanning

Scanner type
Flatbed + sheet-fed
Optical resolution
1,200 x 1,200 dpi (flatbed); 600 x 600 dpi (ADF)
Scan speed
25 ppm simplex (300 dpi); 10 ipm duplex
Sensor & light
CIS, ReadyScan LED
Scan modes
  • Colour
  • Greyscale
  • Black & white; simplex/duplex ADF
Colour depth
30-bit input / 30-bit output; 8-bit greyscale out
Output formats
  • PDF
  • Searchable PDF
  • Secure PDF
  • PDF/A
  • JPEG
  • TIFF
  • Multi-TIFF
  • BMP

Connectivity & software

Interface
USB
Bundled software
  • Epson Scan 2
  • Document Capture Pro
  • ABBYY FineReader
Daily volume
Up to 1,500 pages/day
Drivers / OS
  • Windows 10/8.1/8/7/Vista (x64); macOS 10.6.8-10.9; TWAIN
  • ISIS

Media handling

Max document size
A4
Media types
A4/A5/A6/B5/Letter/Legal; books, passports; ADF 50 to 120 g/m2
ADF
50 sheets, automatic duplex

Physical & power

Power
AC adapter; 11 W typical, 5.8 W standby, 0.8 W power save, 0.15 W off
Dimensions
451 x 315 x 120 mm
Weight
3.7 kg
