DS-2CD1047G2H-LIU

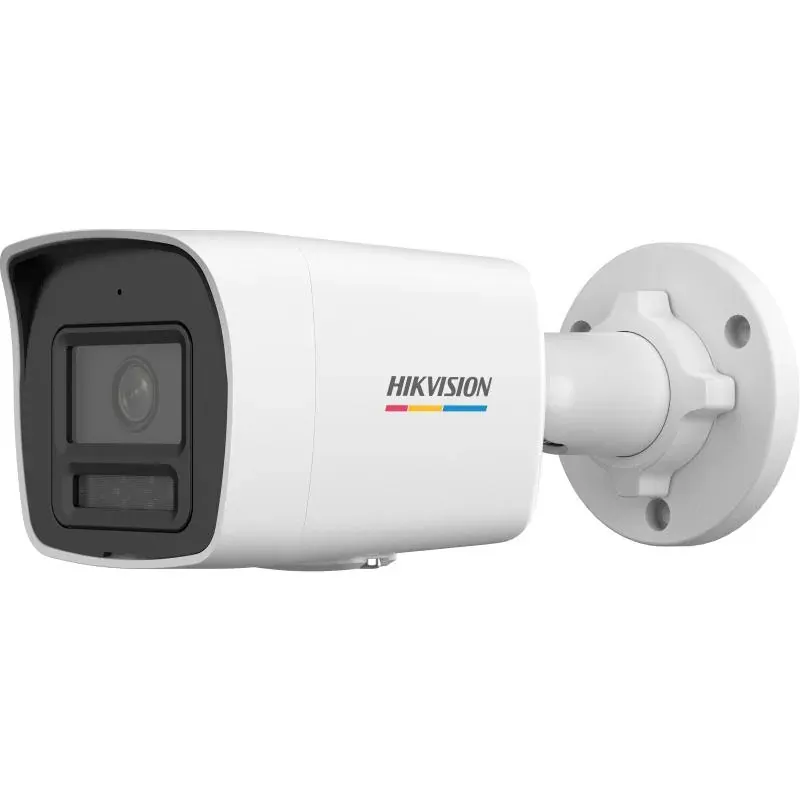

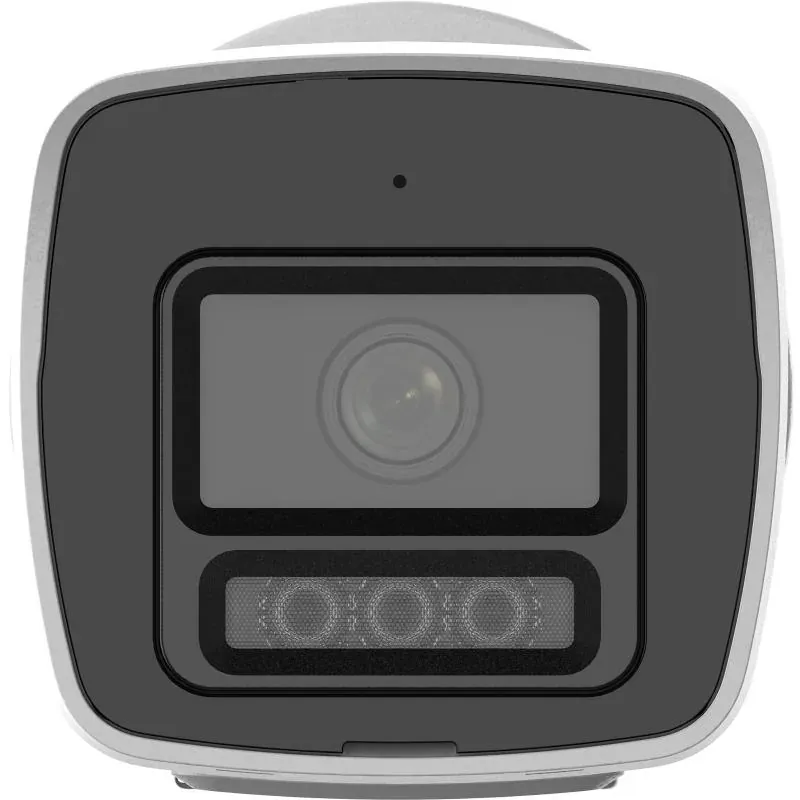

Hikvision DS-2CD1047G2H-LIU Bullet Camera

4MP bullet Hikvision camera with a 4mm lens — for shopfronts, gates and yards.

Key features

  • Camera form Bullet
  • Resolution 4MP
  • Lens 4mm
  • Night vision 30m IR & white light
Call for availability+880 1730-007454
Request quotation

Prices are indicative and subject to change. Confirm at time of order.

Technical specifications

Part 02829

Imaging

Camera form
Bullet
Resolution
4MP
Audio
Built-in microphone
Image sensor
1/3" Progressive Scan CMOS
Max. resolution
2560 x 1440
Min. illumination
Colour 0.001 Lux @ F1.0 (AGC on)
Shutter time
1/3 s to 1/100,000 s
Day & night
IR cut filter
Frame rate
20 fps at 2560 x 1440 (50/60 Hz)
Video compression
H.265+/H.265/H.264+/H.264 main; H.265/H.264/MJPEG sub
Video bit rate
32 Kbps to 16 Mbps, CBR/VBR
Wide dynamic range
120 dB
Image enhancement
  • BLC
  • HLC
  • 3D DNR; SNR ≥ 52 dB
Privacy mask
4 programmable polygon masks

Lens & lighting

Lens
4mm
Night vision
30m IR & white light
Angle adjustment
Pan 0-360°, tilt 0-90°, rotate 0-360°
Field of view
4 mm: H 94° / V 50° / D 110°
DORI
D 77 m, O 30 m, R 15 m, I 7 m (4 mm)
Supplement light
IR + white light, up to 30 m; 850 nm; smart supplement light

Power & build

IP rating
IP67
Power
PoE / 12V DC
Material
Front cover metal, body & bracket plastic
Dimensions
69.8 x 67.9 x 172.9 mm; package 150 x 150 x 141 mm
Weight
550 g; 800 g packed
Operating conditions
-30 °C to 60 °C, humidity ≤ 95% RH (non-condensing)
Approvals
  • CE-EMC
  • RCM
  • IC
  • CB
  • CE-LVD
  • BIS
  • CE-RoHS
  • WEEE
  • Reach; IP67

Network & storage

Ethernet
1 x RJ45 10/100 Mbps self-adaptive
On-board storage
microSD up to 512 GB (-F model, optional)
Protocols
  • IPv4
  • IPv6
  • TCP/IP
  • ICMP
  • DHCP
  • DNS
  • HTTP
  • RTP
  • RTSP
  • RTCP
  • NTP
  • IGMP
  • UDP
  • QoS
  • FTP
  • SMTP
Security
  • Password protection
  • Watermark
  • HTTP/ONVIF digest auth
  • Audit log
  • Host auth (MAC)
Event & alarm
  • Motion detection (human/vehicle)
  • Tamper alarm
  • FTP/email notify
