DS-2CD1163G2-LIU

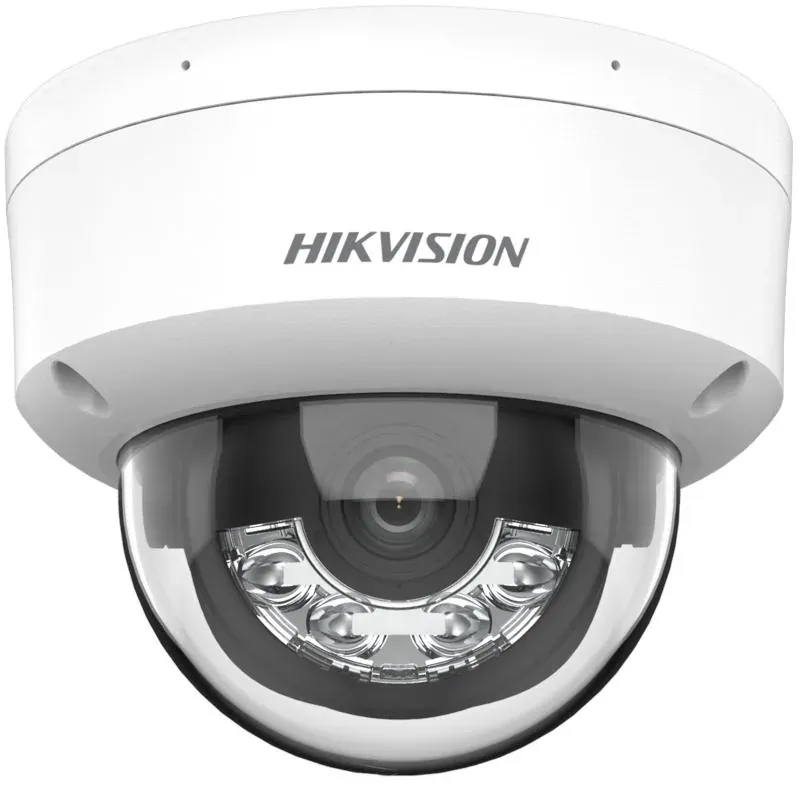

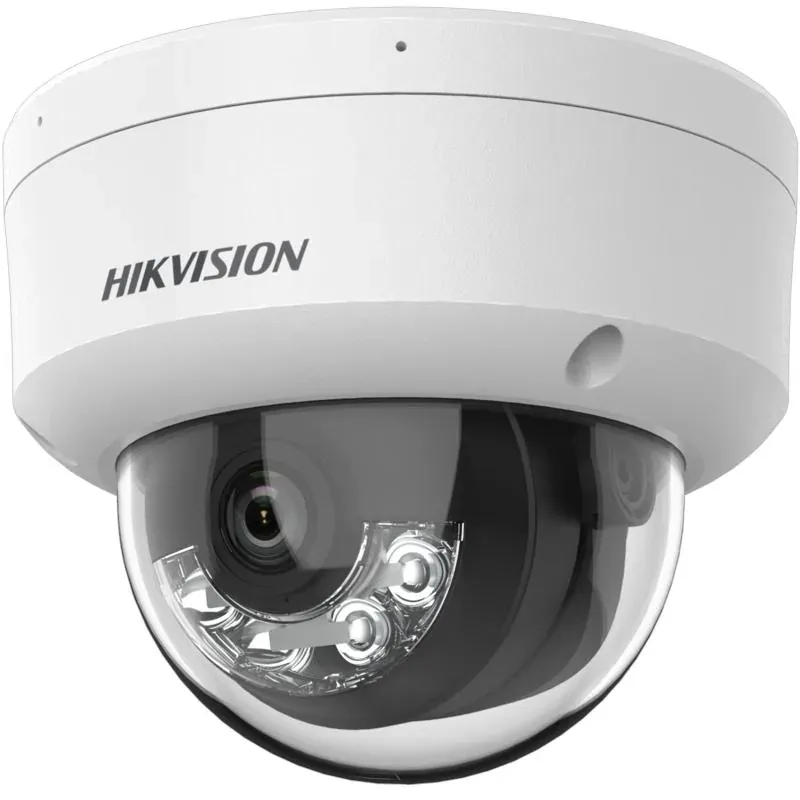

Hikvision DS-2CD1163G2-LIU Dome Camera

6MP Hikvision dome camera with smart hybrid IR and white light — for ceilings indoors and under cover.

Key features

Camera form Dome
Resolution 6MP
Night vision 30m IR & white light
Audio Built-in microphone

Call for availability+880 1730-007454

Request quotation

Prices are indicative and subject to change. Confirm at time of order.

Technical specifications

Camera form: Dome
Resolution: 6MP
Night vision: 30m IR & white light
Audio: Built-in microphone
IP rating: IP67, IK08
Power: PoE / 12V DC
Image sensor: 1/2.4" Progressive Scan CMOS
Max. resolution: 3200 x 1800
Min. illumination: Colour 0.005 Lux @ F1.6 (AGC on); B/W 0 Lux with IR
Shutter time: 1/3 s to 1/100,000 s
Day & night: IR cut filter
Angle adjustment: Pan 0-355°, tilt 0-75°, rotate 0-355°
Field of view: 2.8 mm: 105° H / 55° V · 4 mm: 78° H / 38° V
DORI: 2.8 mm: 76 / 30 / 15 / 7 m · 4 mm: 115 / 45 / 23 / 11 m (D/O/R/I)
Supplement light: IR + white light, up to 30 m; 850 nm IR
Frame rate: 20 fps at 3200 x 1800
Video compression: H.265+/H.265/H.264+/H.264 main; H.265/H.264/MJPEG sub
Video bit rate: 32 Kbps to 16 Mbps, CBR/VBR
Wide dynamic range: 120 dB
Image enhancement: BLC, HLC, 3D DNR; SNR ≥ 52 dB
Privacy mask: 4 programmable polygon masks
Ethernet: 1 x RJ45 10/100 Mbps self-adaptive
On-board storage: microSD up to 512 GB (-F model, optional)
Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
Security: Password protection, watermark, digest auth, audit log, host auth (MAC)
Event & alarm: Motion detection (human/vehicle), tamper alarm, FTP/email notify, trigger recording
Material: Metal & plastic
Dimensions: Ø 121.4 x 97.6 mm; package 150 x 150 x 141 mm
Weight: 550 g (800 g packed)
Operating conditions: -30 °C to 60 °C, humidity ≤ 95% RH (non-condensing)
Approvals: CE-EMC, RCM, IC, UL, CB, CE-LVD, BIS, CE-RoHS, WEEE, Reach
