IPC2122LB-ASF40-EZG

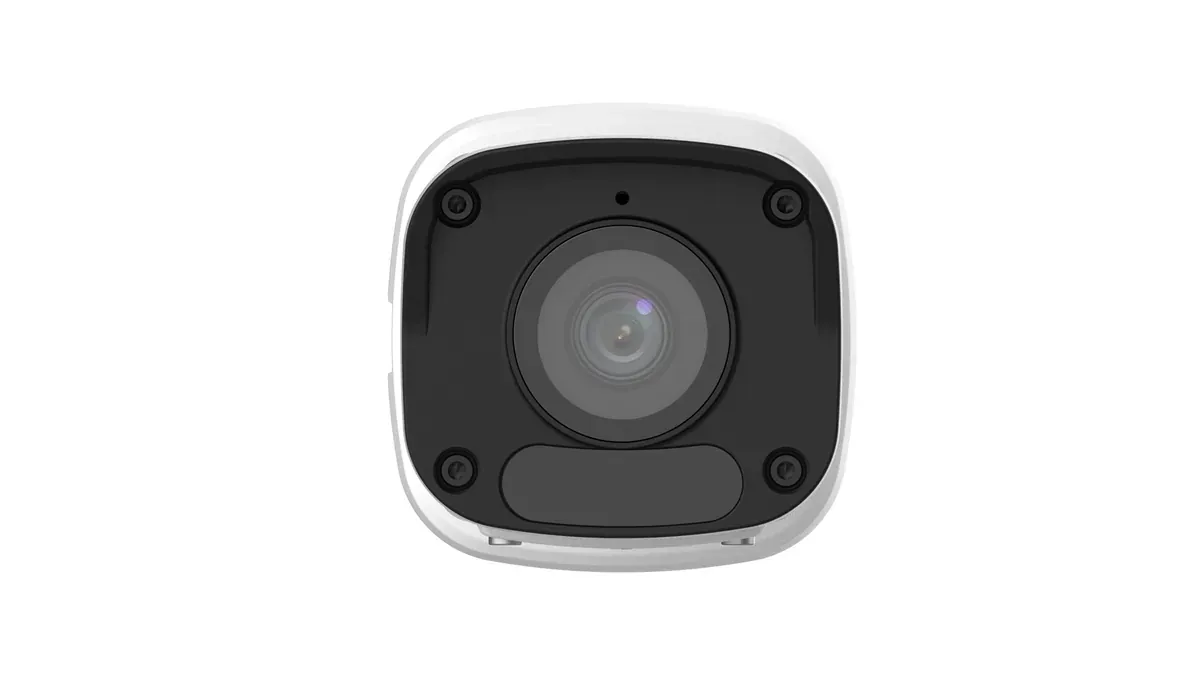

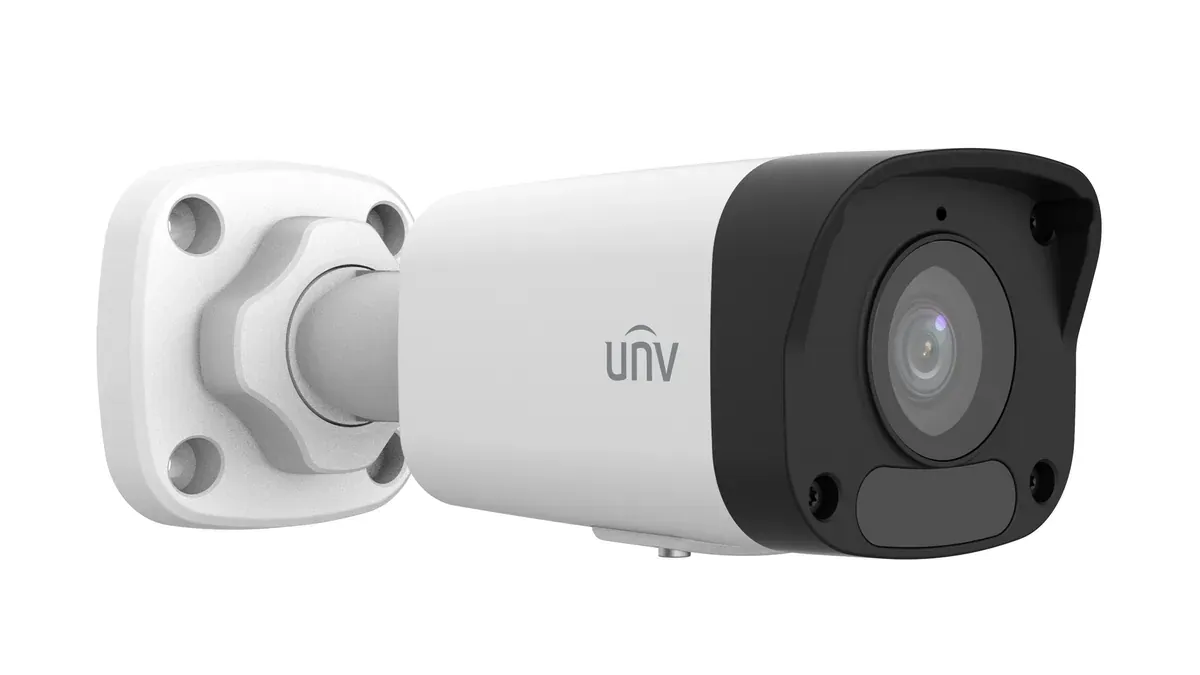

Uniview IPC2122LB-ASF40-EZG Bullet Camera

2.0MP bullet Uniview camera with a 4mm lens 30 m night vision and a built-in microphone — for shopfronts, gates and yards.

Key features

  • Camera form Bullet
  • Resolution 2MP
  • Lens 4mm
  • Night vision 30m IR
Call for availability+880 1730-007454
Request quotation

Prices are indicative and subject to change. Confirm at time of order.

Technical specifications

Part 02718

Imaging

Camera form
Bullet
Resolution
2MP
Image sensor
1/2.9" 2 MP CMOS
Max. resolution
1920 x 1080
Min. illumination
Colour 0.01 Lux @ F2.0 (AGC on); 0 Lux with IR on
Shutter time
Auto/manual, 1 to 1/100,000 s
Day & night
IR-cut filter with auto switch (ICR)
Frame rate
Main stream 1080p at up to 30 fps
Video compression
Ultra 265, H.265, H.264
Video bit rate
128 Kbps to 6144 Kbps
Wide dynamic range
DWDR
Image enhancement
  • 2D/3D DNR; BLC
  • HLC
  • Defog
  • Smart IR; S/N > 52 dB
Privacy mask
Up to 4 areas

Lens & lighting

Lens
4mm
Night vision
30m IR
Angle adjustment
Pan 0-360°, tilt 0-90°, rotate 0-360°
Field of view
4.0 mm: H 82.5° / V 44.5° / D 93°
DORI
4.0 mm: D 64.3 m, O 24.8 m, R 12.4 m, I 6.2 m
Supplement light
IR, up to 30 m; 850 nm; auto/manual on-off

Power & build

IP rating
IP67
Power
PoE / 12V DC
Material
Graphene + plastic
Dimensions
161 x 62 x 63 mm
Weight
210 g
Operating conditions
-30 °C to 60 °C, humidity ≤ 95% RH (non-condensing)
Approvals
  • CE-EMC
  • FCC Part 15B
  • CE-LVD (EN 62368-1)
  • CE-RoHS/WEEE; IP67

Network & storage

Ethernet
1 x RJ45 10/100 Mbps Base-TX
On-board storage
microSD up to 512 GB
Protocols
  • IPv4
  • TCP/UDP
  • DHCP
  • RTP
  • RTSP
  • RTCP
  • RTMP
  • DNS
  • DDNS
  • NTP
  • UPnP
  • HTTP(S)
  • QoS
  • SSL/TLS
Security
  • Password protection
  • HTTPS
  • Log export
  • RTSP/HTTP digest auth
Event & alarm
  • Motion detection
  • Audio detection
